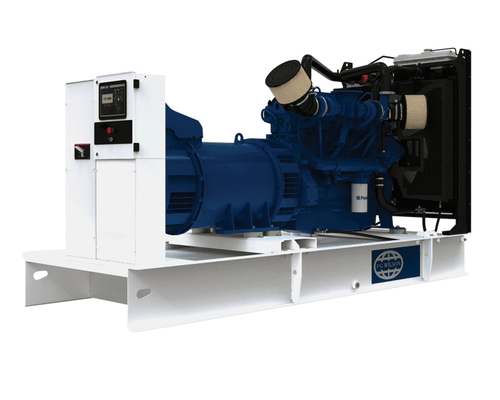

Engine Specifications

• Model: Perkins 4016-61TRG3
• Configuration: 16 Cylinder, 4 Stroke
• Displacement: 59.0 L
• Aspiration: Turbocharged
• Cooling System: Water Cooled
• Engine Speed: 1500 rpm

Electrical System

• Voltage Options:
• 50 Hz: 400/230V
• Power Factor: 0.8
• Alternator: Brushless, Self-Exciting

Technical Details

• Fuel Type: Diesel
• Fuel Consumption (50 Hz):
• 75% Load: 146.5 L/hr
• 50% Load: 102.5 L/hr
• 25% Load: 65.7 L/hr

Dimensions and Weight

Open Set:

• Length: 6700 mm (263.8 in)
• Width: 2600 mm (102.4 in)
• Height: 3150 mm (124.0 in)
• Dry Weight: 9000 kg (19,842 lbs)

Optional Features

• Soundproof Enclosures
• Advanced Control Panels
• Automatic Transfer Switches
• Extended Fuel Tanks
• Custom Painting
• Remote Monitoring Systems
• Climate-Specific Modifications

Warranty and Compliance

• Warranty: 12 months or 2000 hours (whichever comes first)
• Compliance: ISO 8528, BS5000, IEC 60034

Typical Applications

• Large Industrial Facilities
• Major Construction Projects
• Mining Operations
• Infrastructure Development
• Emergency Backup Power
• Rental Power Solutions
• Oil and Gas Industries
• Large Commercial Complexes
• Marine Applications
• Remote Location Power Generation
