Technical Specifications

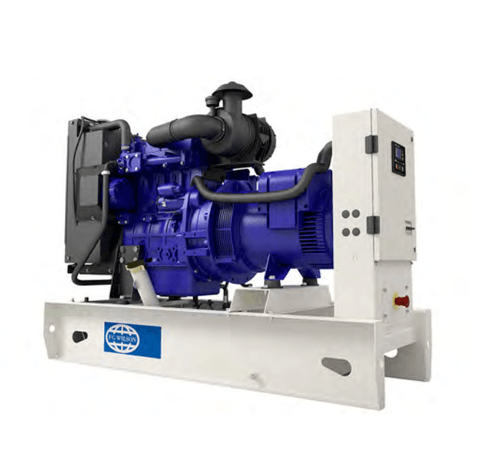

• Engine: Perkins 403D-15G
• Cylinders: 3
• Cooling Method: Water
• Fuel Tank Capacity: Refer to specifications

Dimensions

• Length: 1550 mm (61 in)
• Width: 620 mm (24.4 in)
• Height: 1020 mm (40.2 in)
• Dry Weight: 302 kg (666 lbs)

Optional Features

• CE Certification Upgrade
• Sound Attenuated Enclosures
• Generator Set Control and Synchronising Panels
• Additional Alarms and Shutdowns
• Various Exhaust Silencer Noise Levels

Warranty

• Prime Application: 12 months from start-up, unlimited hours
• Standby Application: 24 months from start-up, limited to 500 hours per year

Compliance

• Meets standards: BS5000, ISO 8528, ISO 3046, IEC 60034, NEMA MG-1.22

Environmental Conditions

• Designed to operate in ambient conditions up to 50°C (122°F)
