The Urban Space Crisis: Why Size Matters for Switchgear
Imagine saving millions in construction costs while improving electrical performance. This isn't a theoretical scenario—it's happening right now with the revolution in compact low-voltage switchgear design.

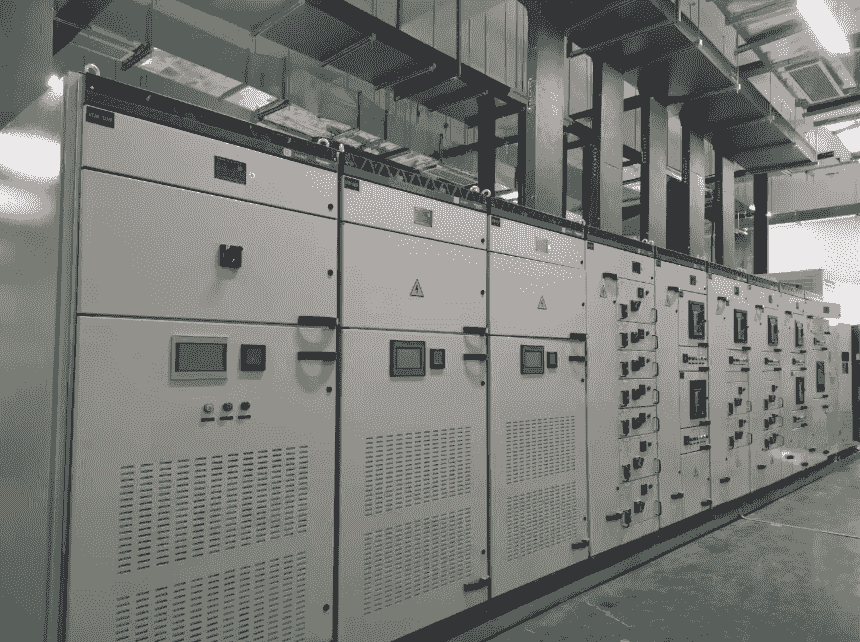

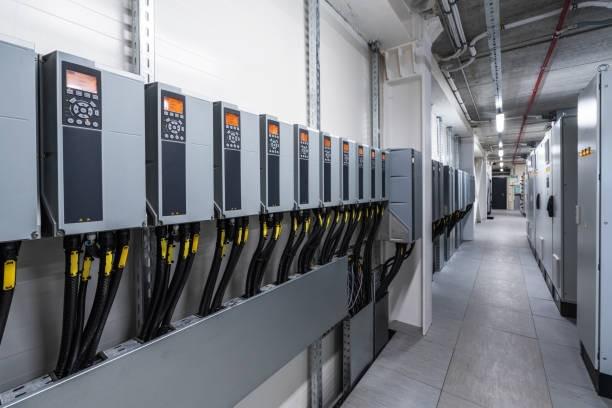

In today's rapidly developing urban landscapes, every square foot comes at a premium. As cities become increasingly dense, electrical infrastructure must adapt to these constraints without compromising performance or safety. The shift toward compact low-voltage switchgear represents one of the most significant advancements in urban electrical design of the past decade.
The Economic Imperative for Compact Switchgear
Traditional low-voltage switchgear cabinets typically measure 700mm in width—a standard that has remained unchanged for years. However, the latest industry innovation has reduced this width to just 500mm, creating a cascade of benefits for urban development:
- Reduced Footprint: A 28.5% reduction in width translates to significant space savings in switchgear rooms
- Lower Construction Costs: Smaller electrical rooms mean reduced building costs
- Decreased Land Usage: Critical in mega-cities where land costs can exceed $1,000 per square foot
- Higher Installation Density: More electrical capacity in the same space
Recent industry analyses indicate that implementing 500mm-wide switchgear can reduce the total footprint of electrical infrastructure by up to 30% compared to traditional installations, resulting in potential savings of millions of dollars for large-scale developments.
Technical Innovations: Making Compact Designs Possible
Incoming and Outgoing Lines
The challenge of incorporating 2500A frame circuit breakers within a 500mm cabinet width has been resolved through innovative design approaches:
- Strategic Busbar Placement: Rear-positioned busbars optimize space while facilitating maintenance
- Uniform Heat Distribution: Carefully engineered layout prevents temperature concentration
- Top Entry: Dense busbar trunking systems allow convenient top entry connections
- Layered Circuit Breaker Arrangement: Three 630A frame circuit breakers can now be arranged in three vertical layers
The engineering precision required to maintain proper electrical insulation between the input and output sides of the three frames while ensuring maintenance accessibility represents a significant advancement in switchgear design.
Drawer-Type Cabinets: Maximum Density, Maximum Flexibility
Traditional drawer-type switchgear cabinets typically accommodate:
- 48 drawers with current ratings below 63A in a 600mm width cabinet
- Vertical busbars rated for 2000A (effective 1814A with 0.6 diversity factor)
- 12 drawers rated at 250A (effective 1800A with diversity factor)
The latest compact designs have transformed this paradigm:
- 1U Drawer Units: Inspired by data center rack design principles
- Ultra-Compact Dimensions: 1150mm width, 150mm height, 400mm depth
- High Current Capacity: Up to 125A per drawer
- Unprecedented Density: 36 1U drawer units in a 500mm cabinet
- Advanced Cooling: Proprietary heat pipe and graphene coating technology
- Modular Flexibility: 2U/3U modules available for higher current applications
- Smart Integration: Custom-designed molded case units with remote monitoring and control
Fixed Cabinets: Reliability Without Complexity
Fixed installations with plug-in molded case circuit breakers deliver maintenance simplicity without sacrificing reliability:
- Marine-Inspired Design: Based on high-density MB301M marine switchgear
- Maximum Capacity: 24 plug-in molded case circuit breakers in 600mm width, 30 x 250A breakers in 800mm width
- Shared Resources: Vertical busbars installed between adjacent cabinets
- C-Type Busbars: Higher current capacity in limited space
The Future Is Compact: Where Innovation Meets Necessity
The evolution of compact switchgear isn't merely about space efficiency—it represents a fundamental shift in how we approach electrical infrastructure in urban environments. By reimagining basic design principles and incorporating advanced materials and cooling technologies, manufacturers have created solutions that meet the demands of modern cities.
As urbanization continues to accelerate globally, the importance of space-efficient electrical equipment will only increase. Industry projections suggest that by 2030, over 80% of new commercial installations in major metropolitan areas will utilize compact switchgear technology.
Implementing Compact Solutions: Practical Considerations
When planning an upgrade to compact switchgear, consider these critical factors:
- Heat Management: Ensure adequate ventilation and cooling for high-density installations
- Maintenance Access: Verify that service points remain accessible despite reduced dimensions
- Future Expansion: Plan for modular growth within space constraints
- Smart Integration: Leverage built-in intelligence for remote monitoring and predictive maintenance
- Standards Compliance: Confirm that compact designs meet all applicable electrical codes
About Nengfu Electrical
Nengfu Electrical specializes in providing efficient and reliable electrical system solutions and engineering services. We continuously innovate to address the challenges of modern power systems while driving digital transformation across the energy sector.
Our comprehensive product lines encompass design, engineering, and production of diesel and gas generators, electrical cabinets, and complete EPC services. Our reputation is built on delivering excellent product performance and reliability in even the most demanding applications.
With our advanced compact switchgear solutions, we're helping urban developers maximize space efficiency without compromising on electrical performance or safety.
Conclusion: Small Size, Big Impact
The transition to compact low-voltage switchgear represents one of the most significant advancements in electrical infrastructure design of recent years. By reducing footprint while maintaining or improving performance, these innovations are transforming how we power our increasingly dense urban environments.
As land costs continue to rise and urban density increases, the value proposition of compact switchgear becomes even more compelling. For developers, electrical engineers, and urban planners, embracing these space-efficient technologies isn't just about saving space—it's about creating sustainable, efficient infrastructure for the cities of tomorrow.
Contact our team today to learn how our compact switchgear solutions can optimize your next project.
