Features

• Rated insulation voltage: 1000V AC
• Rated operating voltage: up to 690V AC
• Rated impulse withstand voltage: 12kV
• Overvoltage category: IV
• Main busbar rated current: up to 7000A
• Rated short-time withstand current: 100kA, 1s
• Partition class: 1 / 2b / 3b / 4b
• Protection level: IP20 / 31 / 40 / 41 / 42 / 54
• Internal arc protection (IEC 61641 V3):
• 85kA, 0.5s (Ipc arc)
• 65kA, 0.3s (Ip arc)
• Seismic resistance: up to seismic intensity of 9, ground acceleration 0.3g (3m/s²)
• Functional unit types: Fixed type, Withdrawable type

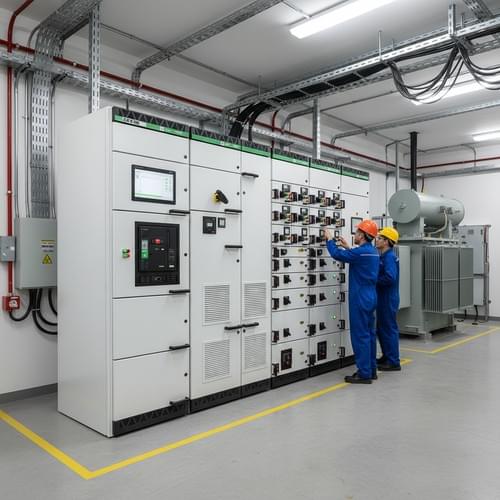

• Cabinet types: Power distribution, Drawer type, Mixed drawer, Capacitor cabinet, ATS cabinet, VFD/Soft starter cabinet

Advantages

• Outstanding Performance
• Excellent electrical performance that meets diverse customer requirements
• Standard anti-corrosion and salt spray protection for harsh environments
• Superior EMC electromagnetic compatibility ensures strong anti-interference ability
• Internal arc resistance of 85kA (0.5s) and seismic resistance up to 9 degrees enhance safety in operation and vibration-prone environments
• High Reliability
• Compliant with numerous international standards, certified by ASEFA
• Meets strict national testing requirements for key structural components
• Integrated with Schneider Electric components to ensure reliable operation
• Smart Connectivity for Digital Evolution
• Pre-configured smart connectivity:
• QR code links critical asset data with anti-counterfeit features
• Digital display panel with gateway alarms for undervoltage and overheating
• Pre-installed communication gateway enables plug-and-play connectivity
• Multilevel sensing:
• Wireless temperature sensors monitor key areas in real time
• V-loss unit detects voltage loss conditions
• Expandable PowerTag wireless metering enables accurate power monitoring and switch status detection
• User-friendly digital experience:
• Ecoreal software boosts configuration efficiency and collaboration
• Commissioning tools support easy setup, firmware updates, and information syncing
• Remote monitoring via “Thousand-Mile Eye” cloud platform and QR code ensures efficient asset management and preventive maintenance
