Features

• Rated insulation voltage: 1000V AC
• Rated operating voltage: Up to 690V AC
• Rated impulse withstand voltage: 12kV
• Overvoltage category: IV
• Main busbar current: Up to 7000A
• Rated short-time withstand current (1s): 100kA
• Partition types: 1 / 2b / 3b / 4b
• Protection degree: IP20 / 31 / 40 / 41 / 42 / 54
• Internal arc protection (IEC 61641 V3): 85kA 0.5s (Ipc arc), 65kA 0.3s (Ip arc)
• Seismic resistance (GB/T 2424.25): Earthquake intensity 9, ground acceleration 0.3g (3m/s²)
• Functional unit types: Fixed / Withdrawable

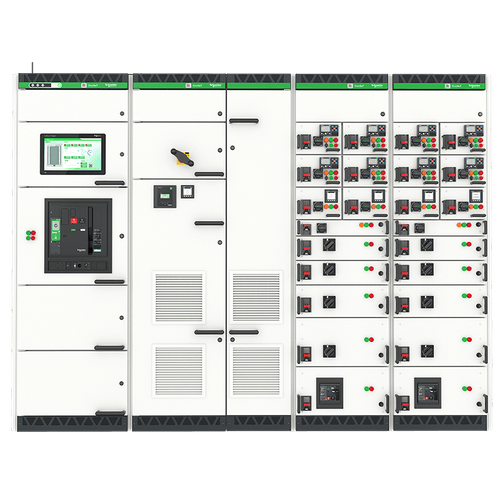

• Cabinet types: Power distribution cabinet, drawer cabinet, mixed drawer cabinet, capacitor cabinet, dual power cabinet, VFD/soft starter cabinet

Advantages

• Outstanding Electrical Performance
• Excellent electrical characteristics meet a wide range of application needs
• Anti-corrosion and salt-fog resistance for harsh environments
• Superior EMC performance ensures high resistance to electromagnetic interference
• Internal arc withstand up to 85kA 0.5s and seismic resistance up to intensity 9 ensure operational safety
• High Reliability & Quality
• Certified by internationally recognized labs (ASEFA)
• Complies with strict national standards
• Uses Schneider Electric components for stable and reliable performance
• Digital Intelligence & Smart Connectivity
• Pre-configured connectivity:
• Smart QR code links key asset info and includes anti-counterfeit function
• Digital panel displays device status, with alarms for undervoltage and overtemperature via gateway
• Standard gateway included for immediate networking
• Multi-point Monitoring:
• Built-in wireless temperature sensors for real-time monitoring of critical points
• V-loss detector for undervoltage identification
• Optional PowerTag wireless monitoring for precise energy data and breaker status detection
• Streamlined Digital Experience:
• Ecoreal software enhances partner collaboration and design efficiency
• Easy-to-use tools for setup, upgrades, and gateway switching
• Cloud-based "Remote Eye" platform enables smart asset management and preventive maintenance
