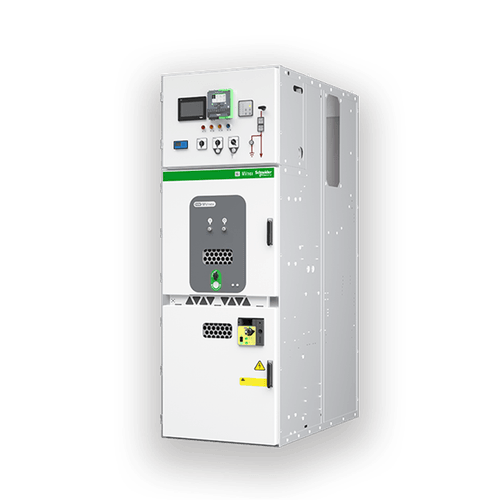

Features

• Rated Voltage: 12kV / 24kV
• Rated Insulation Level:
• Power Frequency Withstand Voltage (50Hz, 1min): 42kV / 65kV
• Lightning Impulse Withstand Voltage (1.2/50 μs): 75kV / 125kV
• Rated Short-Time Withstand Current (4s): 25–31.5–40kA
• Rated Peak Withstand Current: 63–80–100kA
• Internal Arc Classification: 31.5kA / 1s; 40kA / 1s
• Earthing Switch Capability: 31.5kA / 4s; 40kA / 4s
• Degree of Protection:
• Enclosure: IP4X
• Compartments: IP2X
• Operating Environment:
• Ambient Temperature: –15°C to +40°C
• Altitude: ≤1000m
• Humidity: ≤95% (24 hours), ≤90% (1 month)

Advantages

• Innovative "1+3" configuration offers greater flexibility:
• MVnex 12–24kV (standard)
• MVnex 550 (compact)
• MVnex 500 (ultra-compact)
• MVnex Smart (intelligent type)
• Compatible with breaker cabinets, contactor cabinets, and other specialized modules to meet industry-specific demands
• Comprehensive and unique design with mechanical interlocks to ensure full five-fold safety protection
• Screw-drive earthing switch and multifunctional mechanism operation box
• Integrated HVX embedded pole vacuum circuit breaker ensures high reliability and adaptability to various environments
