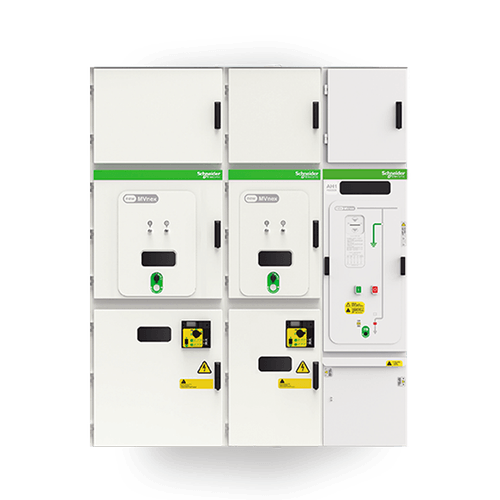

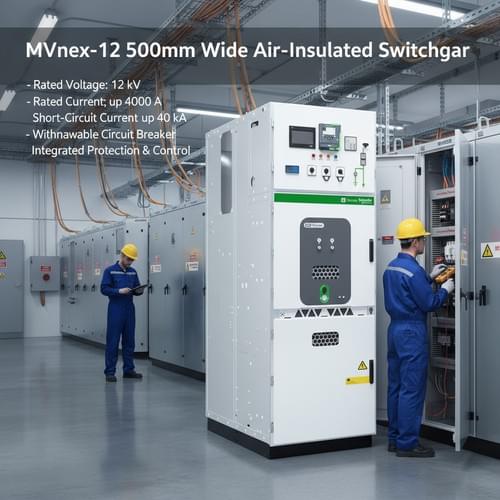

2. MVnex-12 500mm Wide Air-Insulated Switchgear
MVnex is designed for medium-voltage distribution substations across a wide range of sectors:
Power Systems: HV/MV & MV/MV substations
Infrastructure: Hospitals, Airports, Ports
Buildings: Commercial Centers, Residential Blocks, Stadiums
Industries: Light Manufacturing, Metallurgy, Cement, Water Treatment
Electronics Facilities
Data Centers
Rail Transit
Oil & Petrochemical
Power Systems: HV/MV & MV/MV substations
Infrastructure: Hospitals, Airports, Ports
Buildings: Commercial Centers, Residential Blocks, Stadiums
Industries: Light Manufacturing, Metallurgy, Cement, Water Treatment
Electronics Facilities
Data Centers
Rail Transit
Oil & Petrochemical
More Details
Features
- Rated Voltage: 12kV / 24kV
- Rated Insulation Level:
- Power Frequency Withstand Voltage (50Hz, 1min): 42kV / 65kV
- Lightning Impulse Withstand Voltage (1.2/50μs): 75kV / 125kV
- Rated Short-Time Withstand Current (4s): 25 / 31.5 / 40kA
- Rated Peak Withstand Current: 63 / 80 / 100kA
- Internal Arc Classification: 31.5kA/1s; 40kA/1s
- Earthing Switch Withstand: 31.5kA/4s; 40kA/4s
- Protection Degree:
- Enclosure: IP4X
- Compartments: IP2X
- Operating Environment:
- Ambient Temperature: -15°C ~ +40°C
- Altitude: ≤1000m
- Humidity: 95% (24hr) / 90% (monthly average)
Advantages
- Innovative “1+3” configuration for diversified options:
- MVnex 12–24kV (Standard)
- MVnex 550 (Compact)
- MVnex 500 (Ultra-compact)
- MVnex Smart (Intelligent)
- Versatile configurations covering breaker panels, contactor panels, and custom units
- Unique and comprehensive design supporting full 5-point mechanical interlocking for enhanced safety
- Screw-driven earthing switch and multi-functional operation box
- Integrated HVX sealed vacuum interrupter, highly adaptable and quality-assured
